Features：
Lubrication time and intermittent time are controlled by panel switch.
Lubrication time is less than 2 mins/ Intermittent time is more than 2 mins.
With forced Feeding button(F/R), could supply oil continuous, for the safety of machine, please do not click the button over 3 mins.
Installed low oil volume detector to alarm low level automatic.
Installed pressure gauge to identify current pressure.
Two operation mode：
Lubricant when power on, Intermittent when power on.Standard：power on and lubricant.
Three indication lights: Lubrication, Intermittent, unusual.
Panel setting：
Intermittent time 30 sec to 180 mins.
Lubricant time 2 sec to 120 sec.
Detect unusual：
Regular, NC connect with COM.
Unusual, NO connect with COM.
Contact voltage ＜250V, AC/DC current 2A.
The over temperature/ to load protector is attached to protect shaded pole motor.

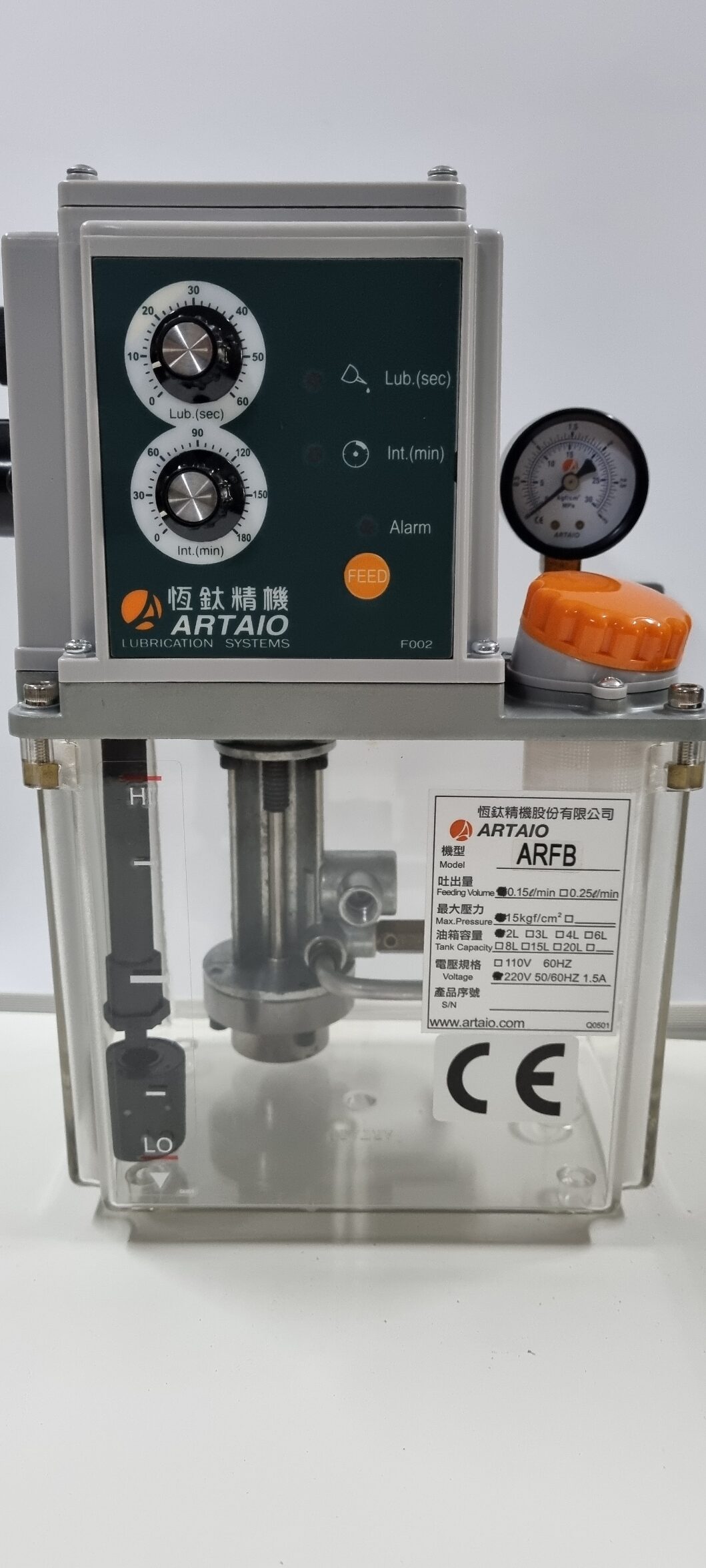

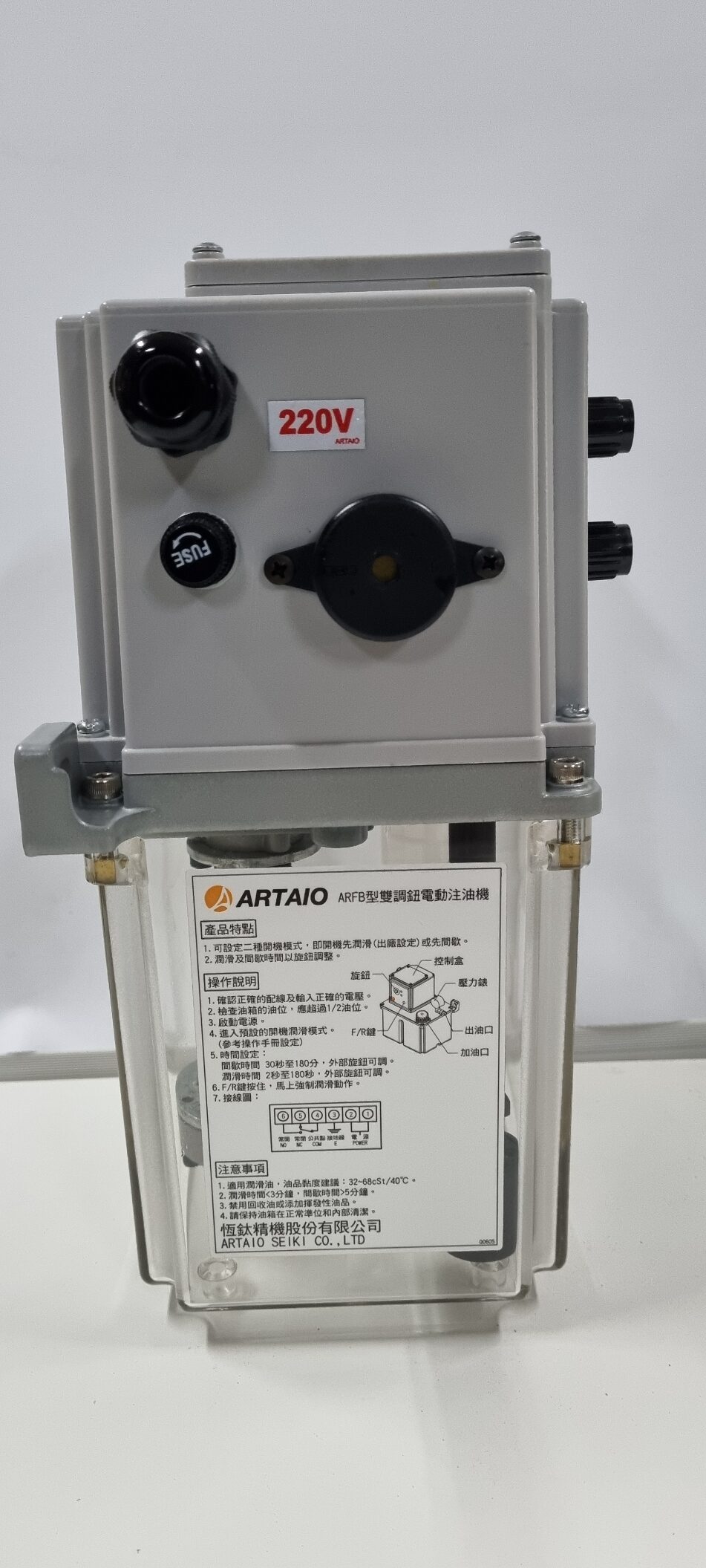

ARFB Resistance Dual Switch Lubricator
Apply to：
1.Auto lubricant system for machines.
2.For machine center, process machining, special purpose machine,etc.
3.For linear guide, hard guide, bearing, screw.
