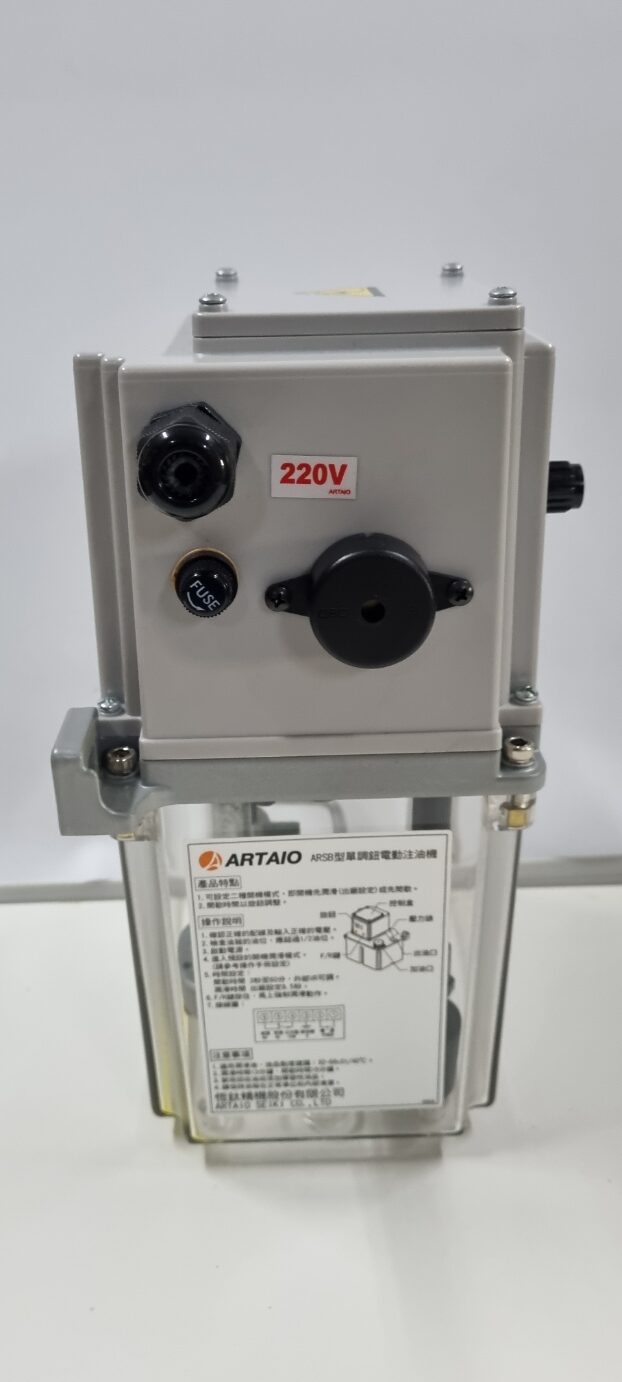

ARTB Resistance Type Digital Display Lubricator

Features：
Lubrication and intermittent time are controlled by panel switch and display digital.
Lubrication time is less than 2 mins/ Intermittent time is more than 2 mins.
With forced Feeding button(F/R), could supply oil continuous, for the safety of machine, please do not click the button over 3 mins.
Driven by induction motor, the over temperature/ load protector is attached to protect the motor.
Equipped pressure gauge, user could check the current pressure.
Time(second/minute/hour) are adjustable.(Standard one sec)
Three operation models： Intermittent, memory, Lubrication. (Standard：lubrication)
Three indication lights：　Lubrication, Intermittent, unusual.
Detect unusual：
Regular, NC connect with COM.
Unusual, NO connect with COM.
Contact voltage ＜250V, AC/DC current 2A.
Installed low oil volume detector to aram low level automatic.
Equipped electric circuit protector to avoid damage by gas.
